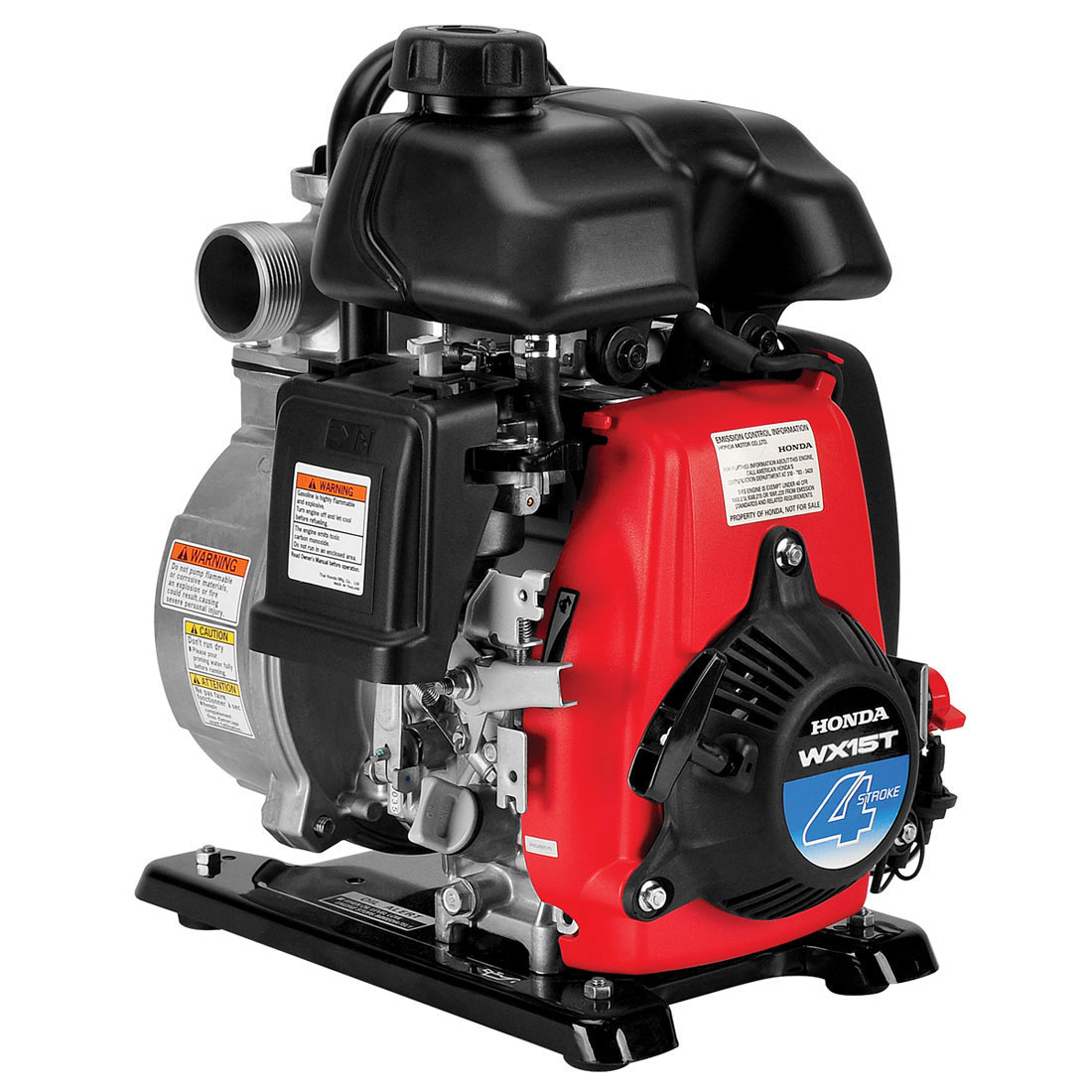

New WX15

Water Pumps
WX15
REQUEST A QUOTE
  • Lightweight general purpose 1.5" pump
  • Easy starting Honda mini 4-stroke engine
  • Weighs only 20 lbs.
  • 74 gal./min capacity
  • Hose clamps and strainer included
Key Features
Engine GXH50
Displacement 49cc
Bore and stroke 1.65" x 1.42"
Compression Ratio 8.0:1
Oil Alert Std
Pump type General purpose Centrifugal Self-priming
Volute Aluminum
Impeller Aluminum
Mechanical Seal (Pump case / impeller) Carbon/Ceramic
Priming time 120 sec. at 16.4 ft.
Drive system Direct
Discharge capacity 74 gal/min
Suction port diameter 1.5" NPT
Discharge port diameter 1.5" NPT
Total head lift 121 ft.
Suction head lift 26 ft.
Maximum pressure 52 psi
Solids handling N/A
Dimensions (LxWxH) 14.0"x10.8"x14.8"
Dry weight 20 lb.
Fuel Capacity 0.20 gal
Run Time @ Max Discharge 0.9 hr
Strainer Part # 78325-YB0-751
Residential Warranty 2 years
Commercial Warranty 1 year
