New WT20

Water Pumps

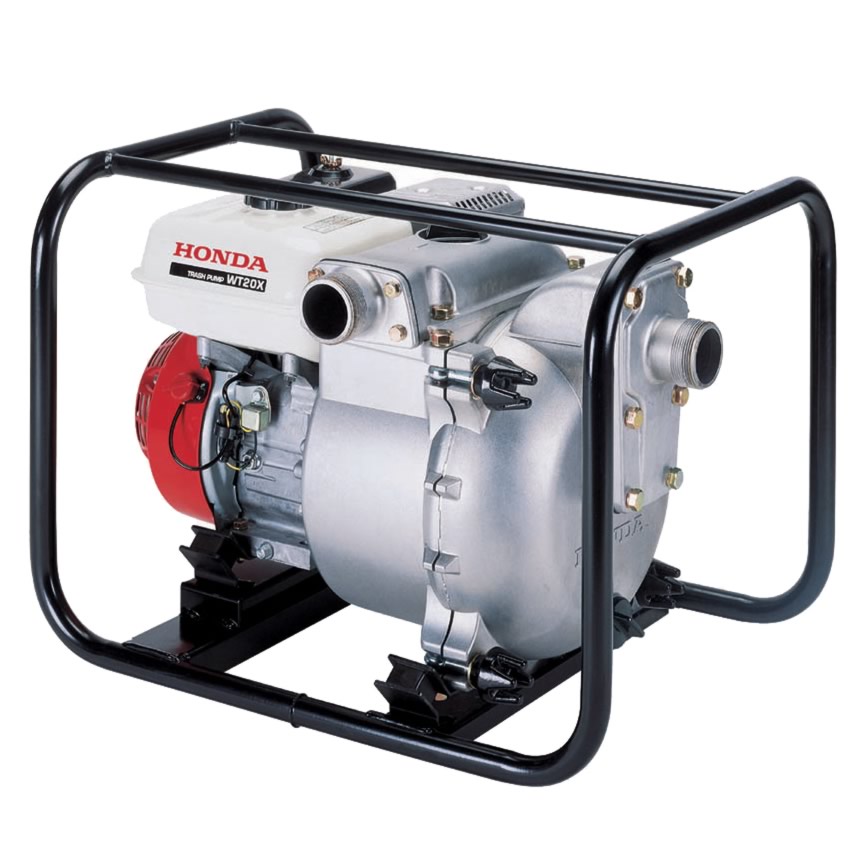

WT20
REQUEST A QUOTE
  • Heavy-duty 2" construction trash pump
  • Easy starting Honda OHV commercial engine
  • 185 gal./min capacity
  • Solid handling capability up to 13/16"
  • Cast iron volute and impeller
  • Quick clean out port
Key Features
Engine GX160
Displacement 163 cc
Bore and stroke 2.7" x 1.8"
Compression Ratio 9.0:1
Oil Alert Std
Pump type Trash Centrifugal Self-priming
Volute Rigid Mounted Cast Iron w/ Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 60 sec. @ 16.4 ft.
Drive system Direct
Discharge capacity 185 gal/min
Suction port diameter 2"
Discharge port diameter 2"
Total head lift 85 ft.
Suction head lift 26 ft.
Maximum pressure 37 psi
Solids handling 13/16 inches
Dimensions (LxWxH) 24.4" x 18.1" x 18.3"
Dry weight 104 lbs.
Fuel Capacity 0.82 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YG0-003
Residential Warranty 3 years
Commercial Warranty 3 years
