New WB20

Water Pumps

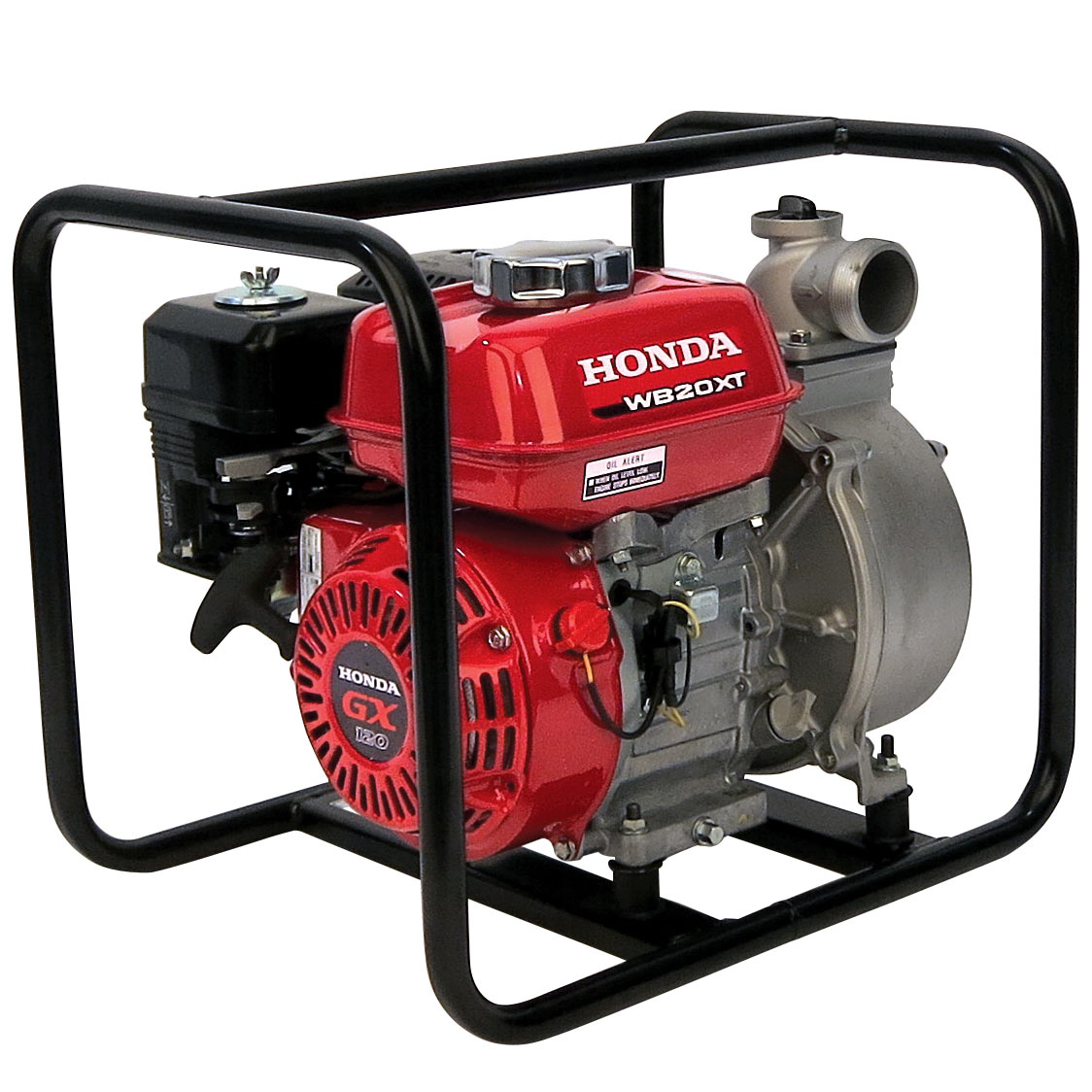

WB20
REQUEST A QUOTE
  • General purpose, centrifugal 2" pump
  • Easy starting Honda OHV commercial engine
  • 164 gal./min. capacity
  • Durable silicon carbide mechanical seal
  • Cast iron volute and impeller
Key Features
Engine GX120
Displacement 118cc
Bore and stroke 2.4" x 1.7"
Compression Ratio 8.5:1
Oil Alert Std
Pump type Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller 4 Vane Cast Iron
Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
Priming time 110 sec @ 16.4 ft.
Drive system Direct
Discharge capacity 164 gal/min
Suction port diameter 2" NPT
Discharge port diameter 2" NPT
Total head lift 105 ft.
Suction head lift 25 ft.
Maximum pressure 45 psi
Solids handling N/A
Dimensions (LxWxH) 19.3" x 14.4" x 16.5"
Dry weight 44 lb.
Fuel Capacity 0.53 gal
Run Time @ Max Discharge 1.7 hr
Strainer Part # 78325-YG3-000
Residential Warranty 3 years
Commercial Warranty 3 years
